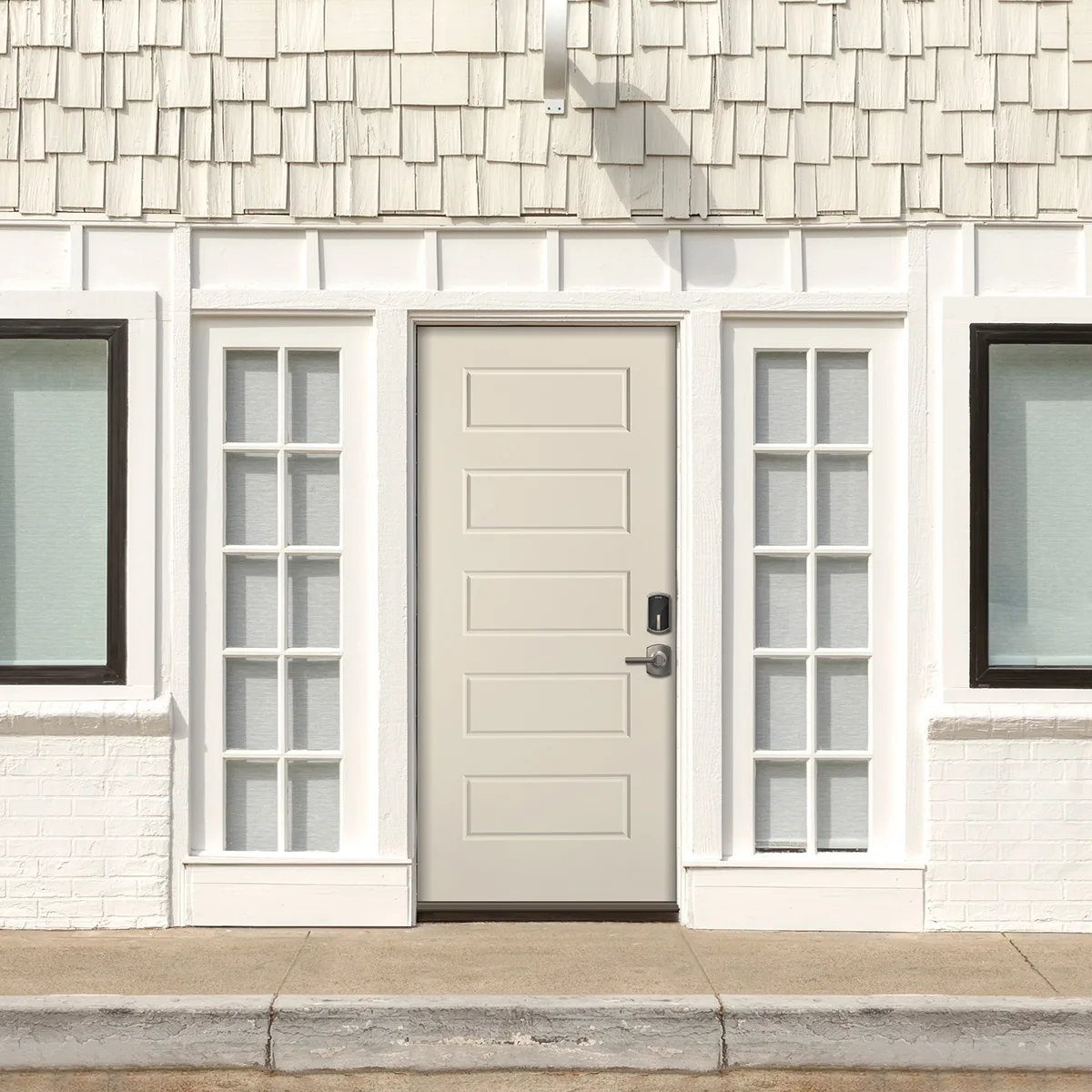

WESTGUARD SERIES
20-GAUGE SMOOTH STEEL
The WestGuard Series delivers superior performance and withstands regular wear and tear with its 20-gauge, hot-dipped galvanized steel doors. This construction, combined with an innovative injected polyurethane foam core, makes it the perfect door for commercial and high-traffic applications, ensuring unmatched durability, reliability, and thermal insulation in demanding environments.
Styles
6/8 HEIGHT
FLFlush
1FPS1-Panel Flat Shaker
2FPS2-Panel Flat Shaker
2PHD2-Panel Raised
2PATHD2-Panel Arch Top Raised
3PEFS3-PANEL HORIZONTAL FLAT SHAKER
3FPS3-PANEL FLAT SHAKER
4PBTHD4-PANEL BLANK TOP RAISED
5PE5-PANEL HORIZONTAL SHAKER
6PHD6-PANEL RAISED
8/0 HEIGHT
FLFLUSH
1FPS1-PANEL FLAT SHAKER
2FPS2-PANEL FLAT SHAKER
2PHD2-PANEL RAISED
6PE6-PANEL HORIZONTAL SHAKER
Specifications
Standard Specifications
| FACE MATERIAL | G40 hot-dipped galvanized steel skin |
|---|---|
| SKIN GAUGE | 20-gauge |
| SKIN SURFACE | Smooth |
| FINISH | Baked-on polyester primer |
| CORE MATERIAL | Injected polyurethane foam core |
| EDGE CONSTRUCTION | Full steel-edge perimeter |
| THICKNESS | 1.720" (nominal 1-3/4") |
| LOCK BLOCK | Composite lock block |
| HINGE REINFORCEMENTS | 20-gauge fixed hinge reinforcement |
| HINGE PREP | 4" surface mount, fixed hinge prep |
AVAILABLE OPTIONS
| HINGE PREP | 4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge 4-1/2" mortise commercial hinge |
|---|---|
| CLOSER PREP | Steel closer reinforcement plates |
| PANIC PREP | Exit hardware reinforcement |
| ADA COMPLIANCE | 10" ADA bottom rail on specific styles |
Ratings
| FIRE RATING | 20-minute or 90-minute |
|---|---|
| SECURITY TESTING | Grade 40 |
| STC RATING | 21 |
| OITC | 25 |
| U-VALUE | 0.17 |
Warranty
Resources
| Codes Compliance and Testing Documents | |
| ENERGY STAR | |
| Pre-Hung Door Install Guide | |
| Steel Door | Care and Maintenance Guide | |
| Steel Door | Construction #II-1 | |
| Steel Door | Lite Cutout Options #II-21-26 | |
| Steel Door | Residential New Construction Standard #II-2 | |
| Steel Door Embossment | 1-Panel Flat Shaker #II-20s | |
| Steel Door Embossment | 1-Panel Flat Shaker 8'0" Height #II-20w | |
| Steel Door Embossment | 1-Panel Flat Shaker ADA #II-20s | |
| Steel Door Embossment | 2-Panel Arch Top Raised #II-20c | |
| Steel Door Embossment | 2-Panel Arch Top Raised ADA #II-20c | |
| Steel Door Embossment | 2-Panel Flat Shaker #II-20t | |
| Steel Door Embossment | 2-Panel Flat Shaker 8'0" Height #II-20y | |
| Steel Door Embossment | 2-Panel Flat Shaker ADA #II-20t | |
| Steel Door Embossment | 2-Panel Raised #II-20a | |
| Steel Door Embossment | 2-Panel Raised 8'0" Height #II-20j | |
| Steel Door Embossment | 2-Panel Raised ADA #II-20a | |
| Steel Door Embossment | 3-Panel Flat Shaker #II-20u | |
| Steel Door Embossment | 3-Panel Flat Shaker ADA #II-20u | |
| Steel Door Embossment | 3-Panel Horizontal Flat Shaker #II-20z | |
| Steel Door Embossment | 3-Panel Horizontal Flat Shaker ADA #II-20z | |
| Steel Door Embossment | 4-Panel Blank Top #II-20f | |
| Steel Door Embossment | 5-Panel Horizontal Shaker #II-20q | |
| Steel Door Embossment | 5-Panel Horizontal Shaker ADA #II-20q | |
| Steel Door Embossment | 6-Panel Horizontal Shaker 8'0" Height #II-20x | |
| Steel Door Embossment | 6-Panel Raised #II-20e | |
| Steel Door Embossment | Smooth Steel Style Options #II-5 | |
| Steel Entry Doors for Commercial | Limited 7 Year Warranty | |
| Steel Entry Doors for Residential | Limited Lifetime Warranty | |
| Technical Resource Guide (complete) |
CUSTOM CAPABILITIES
Our doors can be customized to fit your spec.
Give us the template, we'll make the door.
